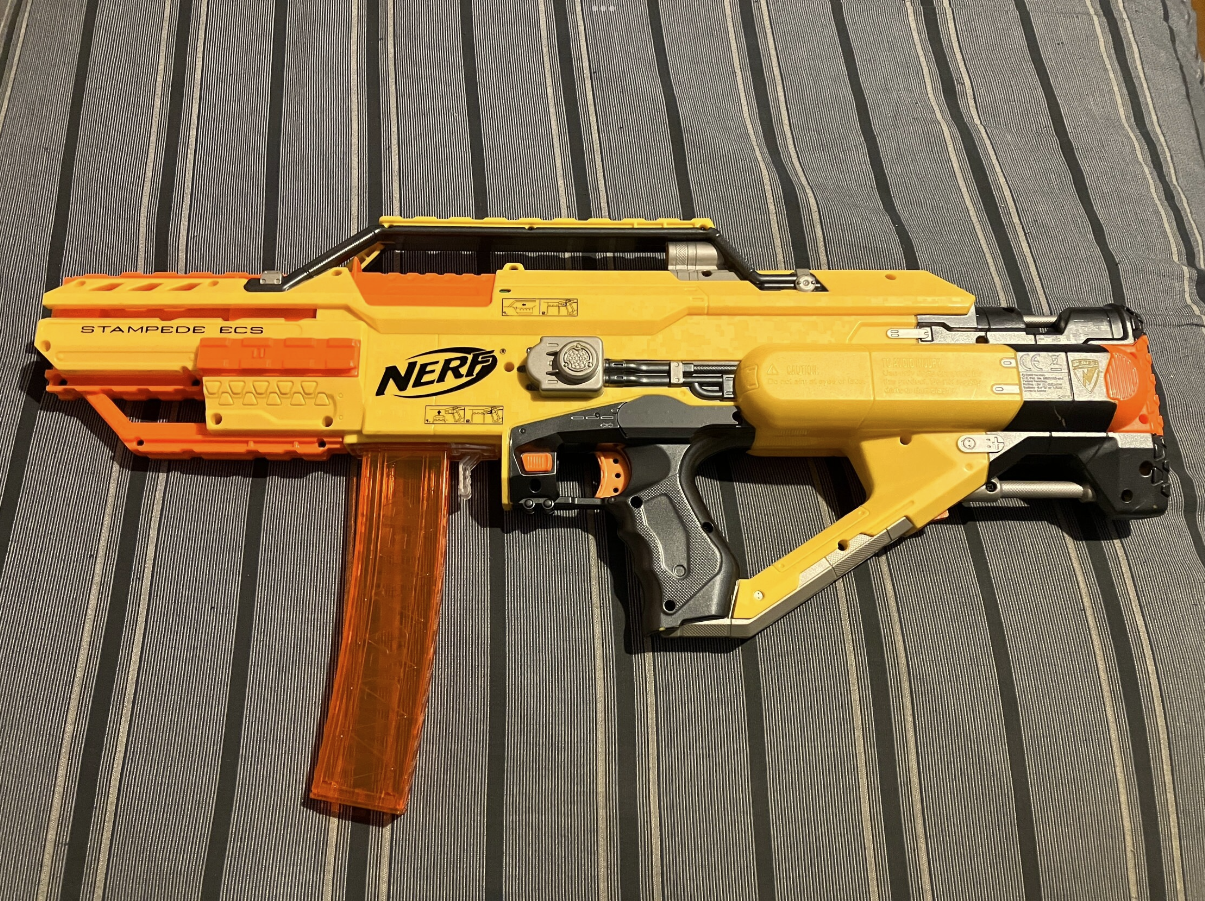

These are digital files for a Stampede pusher breech kit which turns a stock Stampede into a high power blaster capable of firing half length darts.
Features:
- Option of using 17/32 brass or aluminium barrels
- Performance is around 140-150fps with a 9kg Stampede spring
- Pusher has a slope on the base to make feeding darts a lot smoother
- Built in dart guide for reliable dart feeding
- Relocated on/off switch so you don’t have wires going across shell halves
- Changes to nearly all of the parts in the Stampede to increase reliability
- Extra detailed installation guide since the Stampede is a complex blaster
Additional materials required:
- 1x M3 x 20mm screw
- 1x M3 hex nut
- Metal Stampede gears (recommended)
- Stampede upgraded return spring (recommended)
- 9kg Stampede spring or 7/9/12kg Retaliator spring
- (brass version) 13cm length of 17/32 inch K&S brand brass (for barrel)
- (brass version) 51.5mm length of 9/16 inch K&S brand brass (for barrel)
- (brass version) 22.5mm length of 17/32 inch K&S brand brass (for pusher)
- (aluminium version) 15cm length of 13mm ID, 16mm OD aluminium barrel
- (aluminium version) 10mm OD, 6mm ID, 2mm cross section pusher o-ring
- Tighter or looser aluminium barrels will work with different pusher o-rings
- 2x full sized microswitches (15 or 21 amp)
- 16/18 AWG wire
- Battery connector
- Optional: 2x M3 screws between 16mm and 35mm for battery door
NOTE: Kit was designed around worker straight talon magazines and adapters. I cannot guarantee it will be compatible with other half dart magazine types.

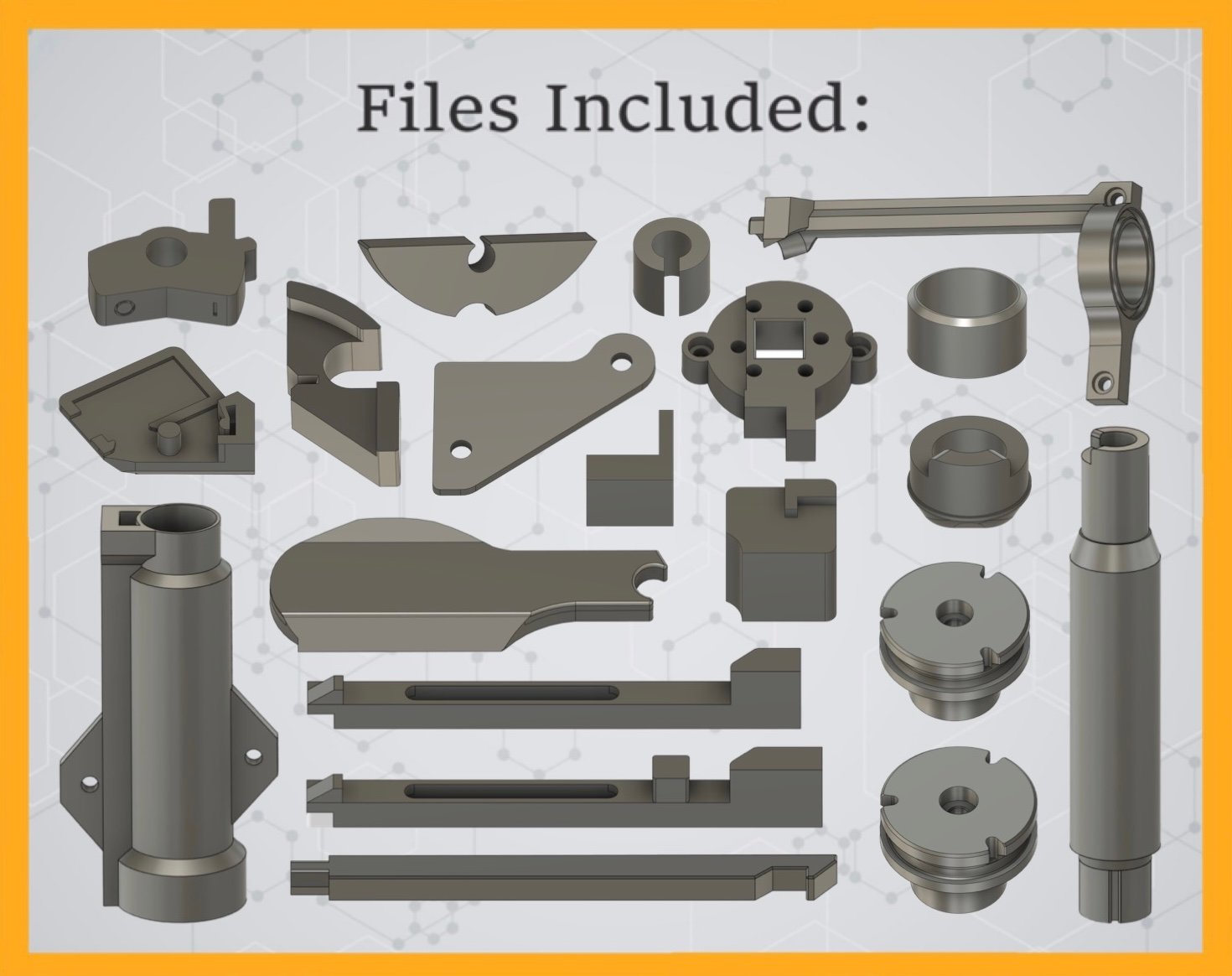

Purchase includes 20 .stl files (plus extras) and a detailed guide to install the kit.
