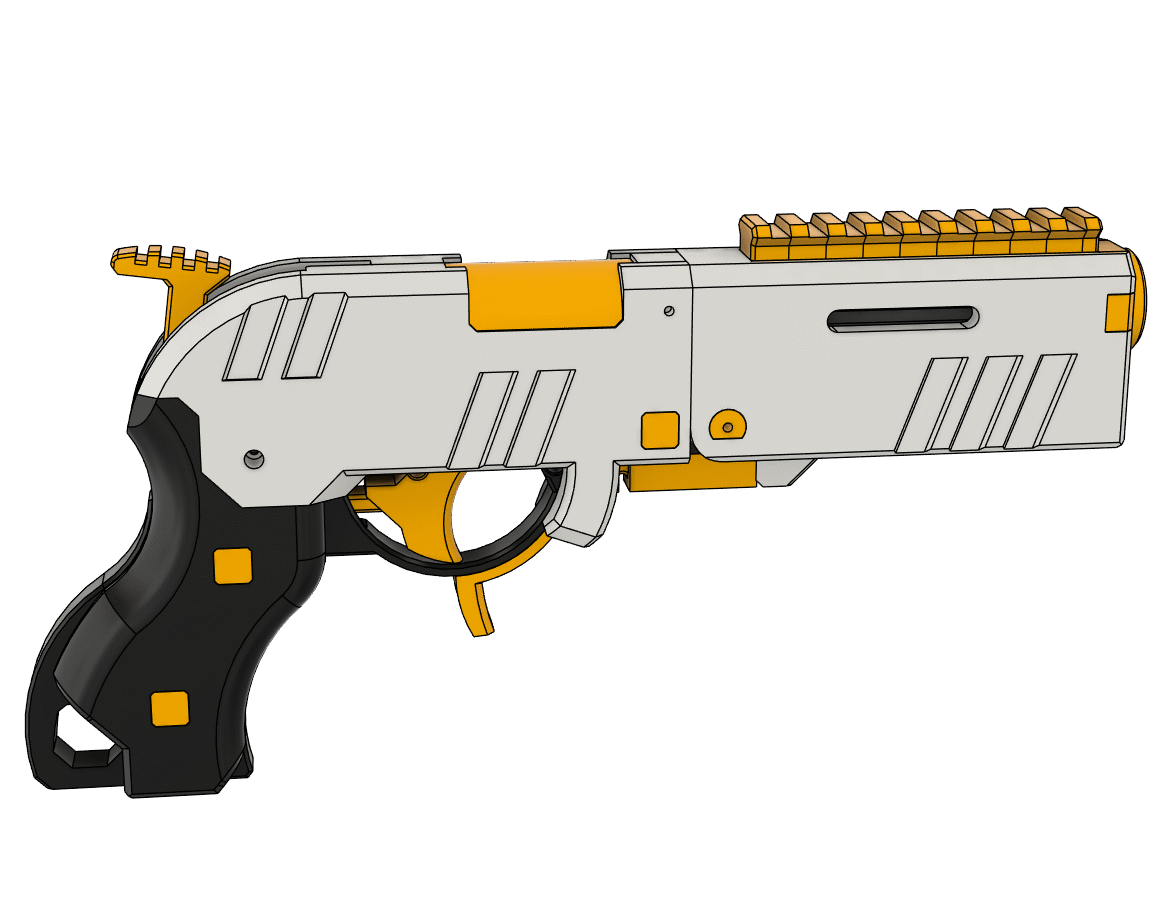

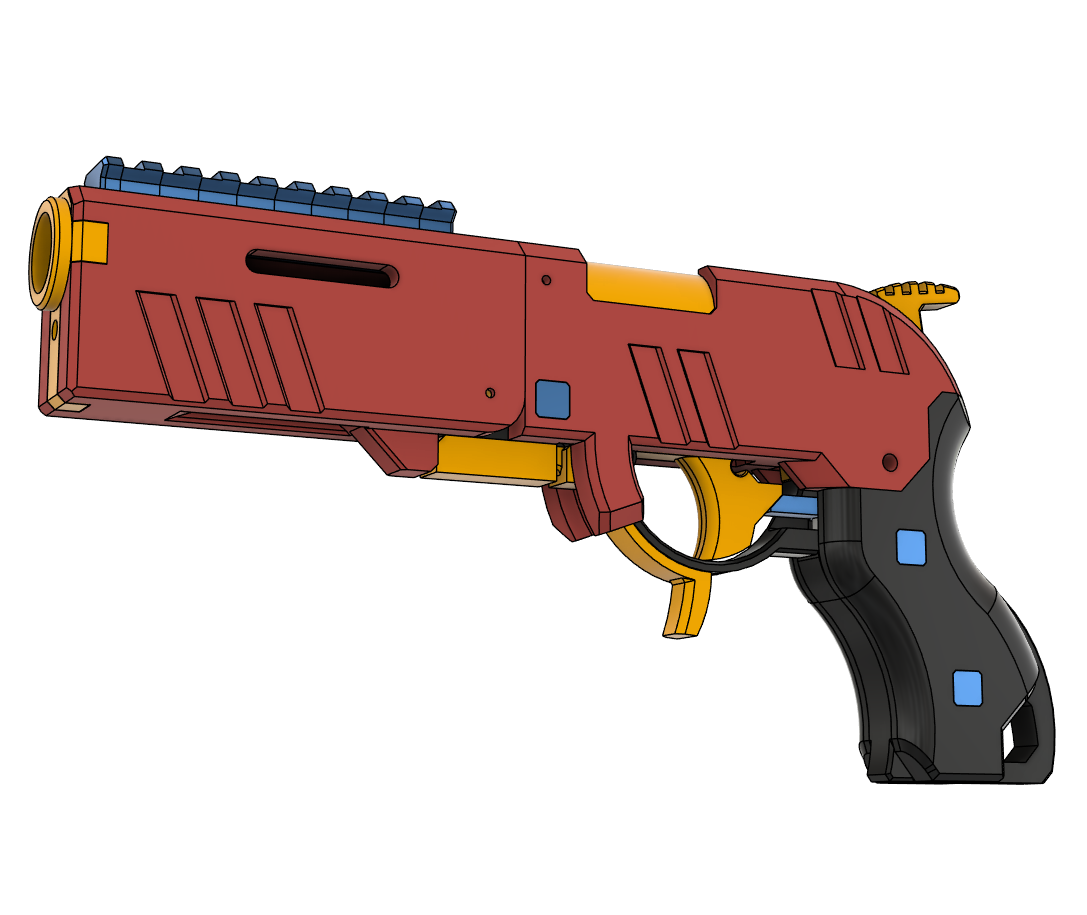

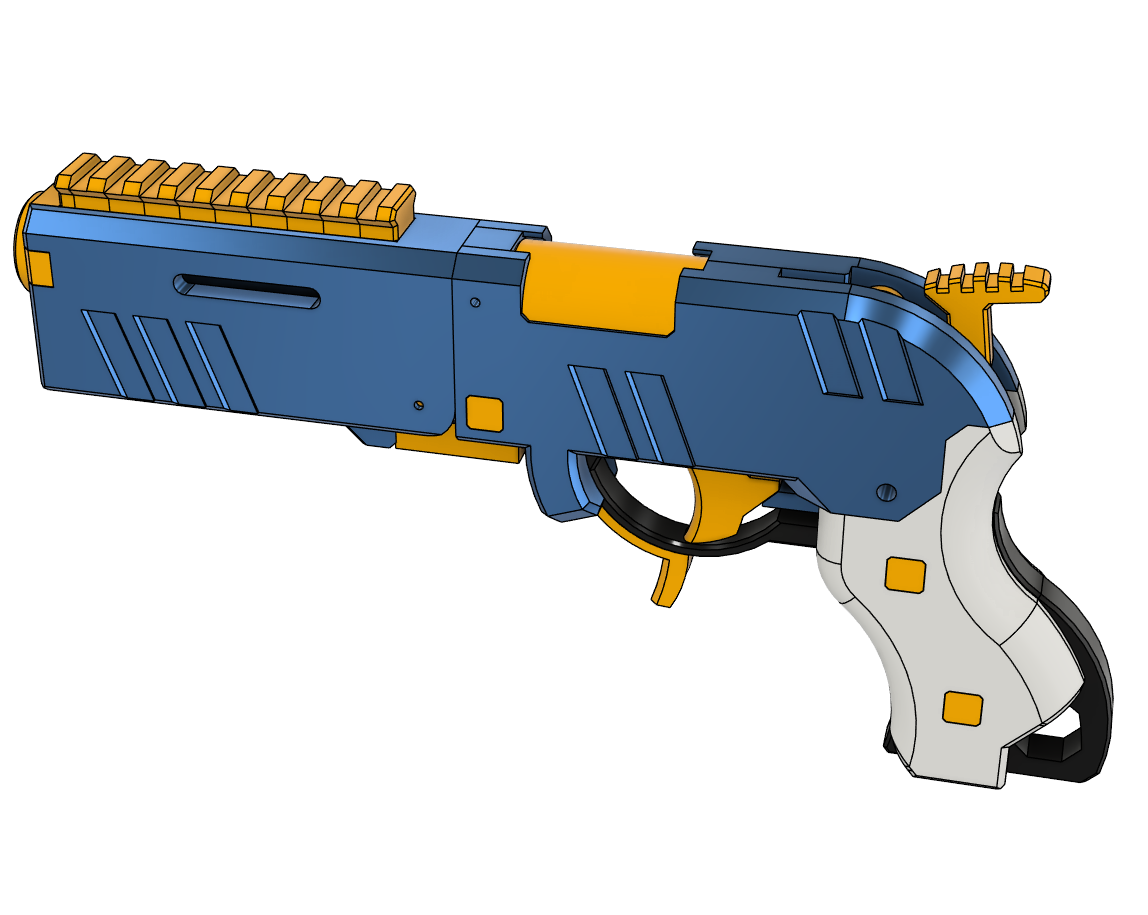

This is once more a shell for the X-Shot Micro 2.0, the newest tiny blaster variant from X-Shot/Zuru. All the hardware you need is already provided by this Micro, too. (Well, except for a few common household rubberbands and some crafting foam for the seal.) You just need to print the parts in the colors of your chosing and you’re good to go to take a screwdriver to the blaster.
Time for a revisit, but with the Micro 2 and a gimmick more~
The Details:
This is a single-action blaster (meaning you have to prime it with the hammer, so you can then fire) with a break-open barrel that uses the inline shells (3 darts) you already know from previous reshells.

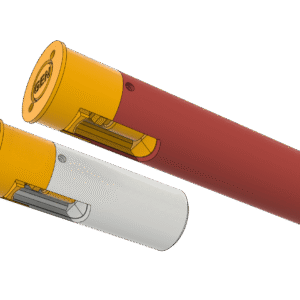

The 2 dart shotgun shells are made by Corvus and can be gotten from him once he uploads them.
A firing demo:
https://youtu.be/0k8ENFRQQLo <- From yours truly
Printing
All parts can be printed on a bed of 180mm edge length, if I didn’t mess this up. Some supports will be required, but everything should already be in its proper orientation. I tend to print with 4 walls and 10% cubic infill. The alternate plunger might need more, depending on your filament brittleness.
The assembly instructions can be found here -> https://wildwestscifi.net/x-shot-micro-2-0-reshell-7-hammer-action
Changelog:
v1.0
– Initial Release
