You know these by now: This is a shell for the X-Shot Micro 2.0, the not so newest anymore tiny blaster variant from X-Shot/Zuru. Nearly all the hardware you need is already provided by this Micro, too. (Except for a few common household rubberbands and some crafting foam or mega dart cuttings for the seal.) You just need to print the parts in the colors of your chosing and you’re good to go to take a screwdriver to the blaster.
This too is somewhat of a revisit of a Micro 1 reshell, because lever-action is fun. 🙂
The Details:

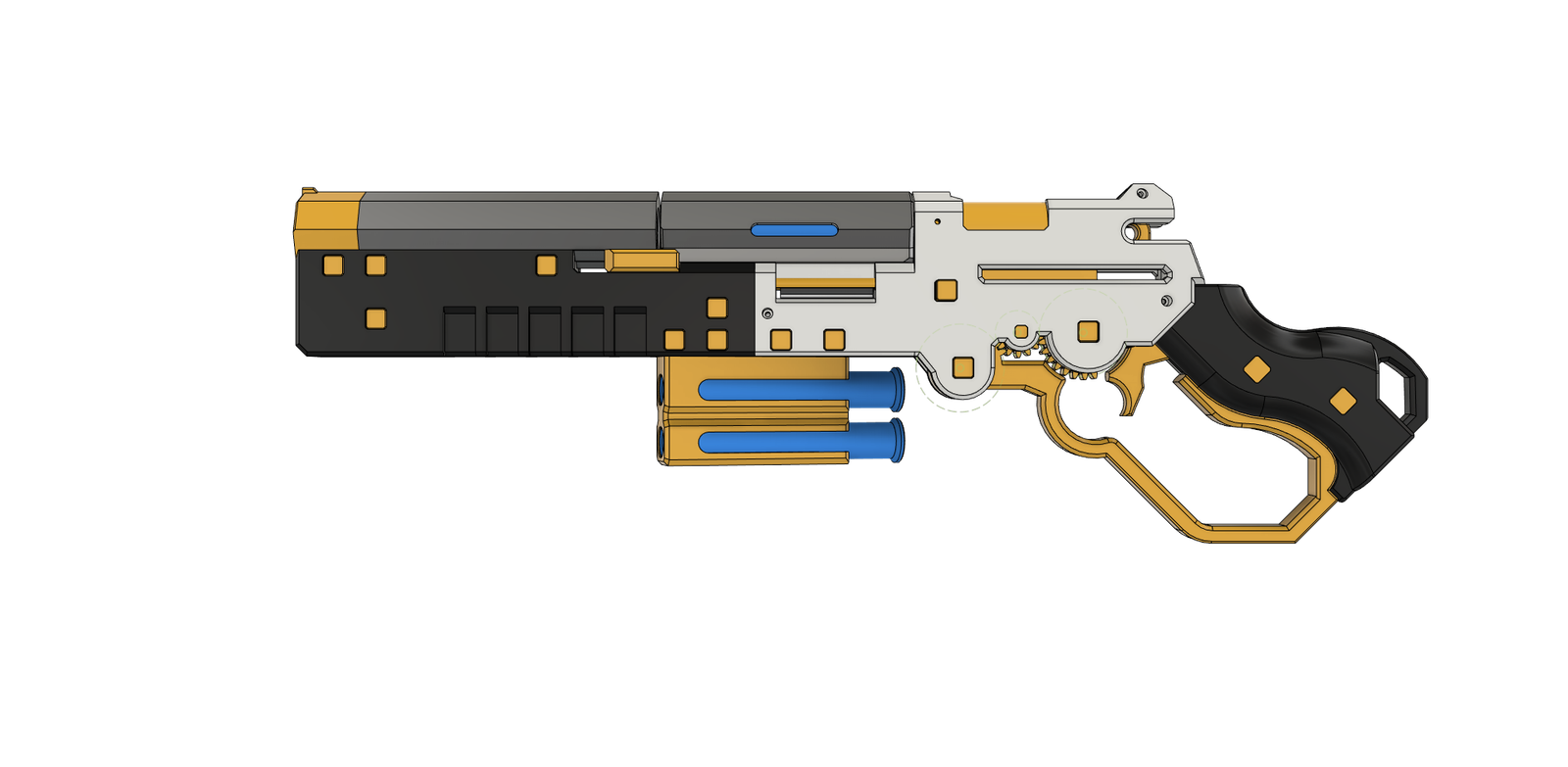

This is a single-action blaster (meaning you have to prime it with the lever, so you can then fire) with a flip-out barrel that uses the inline shells (3 darts) you already know from previous reshells. I am getting a lot of mileage out of those, really.
These inline shells can hold 3 darts at a time, and can be fired without flicking. You just prime and fire and they do their thing. This was designed by Corvus, same as this addon:
- Shotgun Shells for 2 darts (even rear-loading) at a time, instead of the inline shells.
https://youtu.be/eJ26WbFSmc0 <- A firing demo, by your’s truly
Printing:
All parts can be printed on a bed of 200mm edge length, if I measured this correctly. Some supports will be required, but everything should already be in its proper orientation. I tend to print with 4 walls and 10% cubic infill. The alternate plunger might need more, depending on your filament brittleness.
The assembly instructions can be found here -> https://wildwestscifi.net/x-shot-micro-2-0-reshell-9-lever-action
Changelog:
v1.0 – Initial Release
